mobile security barrier system

MOBILE RAZOR WIRE SECURITY BARRIERS is designed for rapid deployment of effectively layered
concertina coils. This is serious obstacle for rebels or demonstrators and vehicles to gain

Product Description

MOBILE RAZOR WIRE SECURITY BARRIERS  is designed for rapid deployment of effectively layered
concertina coils. This is serious obstacle for rebels or demonstrators and vehicles to gain
Razor wire trailer deployment trailers are available in 3 coil configuration (3 coil = gives
1.7m high protection for 100m distance).

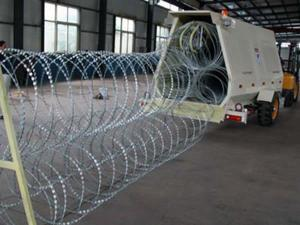

The operation of the razor wire deployment trailer is simple and convenient. Connected
to the vehicle through axis of traction and can be hitched on any type of vehicle. The next
step will be to open the tall gate or release the barrier  holder frame and drive forward
automatically releasing and stretching the concertina coil barrier.

Product Advantages

1. Fast Deployment
It can deploy 100M barrier in 19 seconds and recover in 4 minutes.
2. Military Standard
Trailer is made of strong strength steel, which is in accordance with military standard.
3. Automatic Withdrawing
You only need to press the button on remote control to recover barrier that is recycled.
4. Modular Design
Trailer is modular designed, so it is shipped in knock-down condition. This saves store space and freight cost.
5. Easy Assembly
Trailer is easy to assemble and operate. Traction part can be folded or knocked-down when not work, so as to save space.
6. Perfect Accessories
Bruhless motor makes travel more quite and needs low maintenance costs;
Off-road tires are applicable to hard transportation and weather;
Storage battery, along with solar panel make trailer work longer;
Control system includes both manual buttons and remote controller;
The equipment has both oil disc brake and electric brake function.
7. Safety Operation
With searchlight, turn light , rear warning lamp, alarm light on the top, to increase the safe coefficient;
We provide working suit, gloves (stainless steel gloves are available), tool box and first-aid case.

Product Specifications

1. Trailer
Length: 5.8m
Width: 2.2m
Height: 2.3m
Net Weight: 2300±200KGS

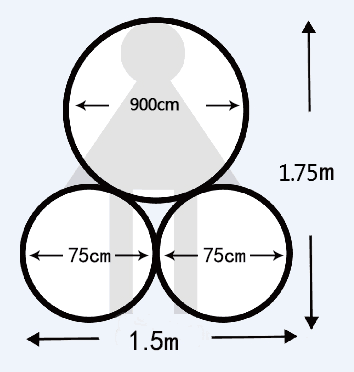

2. Razor wire
Coil diameter: 75cm(bottom),900-1000cm(top)
Material: hot-dipped galvanized, electric-dipped galvanized, stainless steel
Blade: Specifications are customized
Length: compressed module: about 3.5m
               released length 100m
Loops: As clients required.

Height: 1.75m



Product Application

Government: Help government to control certain emergency site. Police can isolate terrorists and innocents with this
                         equipment in seconds, when faced with crowd, violence or riot.
Military: Help soldiers to deploy permanent or temporary barrier on border line.
A rmed Police: Deploy razor wire hundreds of meters to surround a building in few seconds when arresting criminals
