Flat Razor Wire

Flat wrap razor coils is a modification of the spiral razor security barrier, adapted for use in more crowded conditions. Flat security barrier concertina as spiral security barrier, also made of reinforced barbed tape concertina. Flat razor barrier security is different from razor wire concertina that the coils located in one plane, which makes the design much more compact.
Availability:
Quantity:

Product Description

一、Product introduction

There are two forms: single coil or crossed razor lines, which are connected by clips.



The barbed wire Concertina is a razor wire mesh that is punched and threaded on a core with a threading knife, manufactured and deployed as a coil wire. It can be used as an extra safety measure in front of or at the top of another obstacle. The number of coils in the razor wire fence can be fixed to each other at the top. The coil wire is fixed to the barrier by bolted angle iron beams by using a single razor The wire is made into a flat wrapped razor wire which is then cut to form a flat plate in the vertical direction. We usually use it with a linear razor wire mesh to build a defensive wall, or use it alone as a fence. It is commonly used in communities, mines, warehouses, prisons, defense critical sites and various military uses.

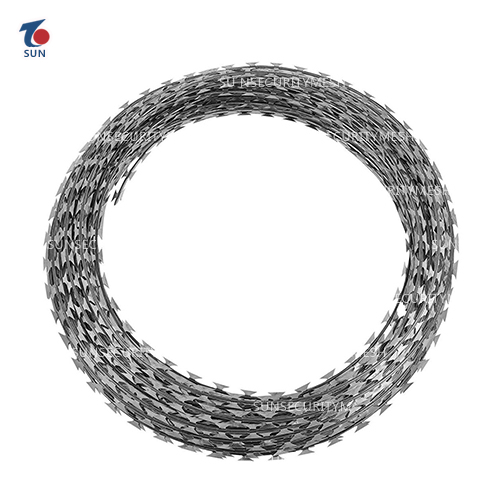

Flat Panel Razor Coil/Flat Razor Wire Panel

Feature:

Difficult to cut with standard tools.

Neat and unobtrusive mesh form.

Constructed from corrosion resistant galvanized steel or stainless steel for long service life.

No maintenance cost.


二、Product parameters:

Material: mild steel and hot-dip galvanized sheet and stainless steel 304 316
1、Roll diameter: 40 cms.
Length covering: 10 linear meters.

2、Blade Type: CBT 65
Number of laps: 32 in 10 meters
Distance between rounds: 30cms
Distance between center of blades:10.5 cms
Number of blade per round: 14 above and 14 below.
Total of blades per round: 28
Total of knives per roll: 896 blades.
Weight per galvanized roll of razor wire: 7.70 lbs.
Weight per Stainless steel rolls of razor wire: 7.92 lbs.
Blade thickness: 0.5mm.


3、Materials:

Galvanized steel sheet or stainless steel sheet and wire.

Razor flat fence

Reference Number

Thickness
(mm)

Wire Dia
(mm)

Barb Length
(mm)

Barb Width
(mm)

Barb Spacing
(mm)

Diamete
r(mm)

No.
Loops

BTO-12

0.4±0.05

2.5±0.1

12±1

15±1

26±1

300mm

33

BTO-15

0.4±0.05

2.5±0.1

15±1

15±1

33±1

450mm

56

BTO-22

0.4±0.05

2.5±0.1

22±1

15±1

34±1

600mm

56

BTO-30

0.4±0.05

2.5±0.1

30±1

18±1

45±1

700mm

56

CBT-25

0.4±0.05

2.5±0.1

25±1

16±1

40±1

800mm

56

CBT-60

0.6±0.05

2.5±0.1

60±2

32±1

100±2

900mm

56

CBT-65

0.6± 0.05

2.5±0.1

65±2

21±1

100±2

980mm

56



Core Wire Diameter

Thickness of blade

Coil Height

Coil Length


2.5mm±0.1mm

0.5mm±0.05mm

450mm

16m


2.5mm±0.1mm

0.5mm±0.05mm

600mm

16m


2.5mm±0.1mm

0.5mm±0.05mm

900mm

16m


Flat Wrap Height

Fixed Length

Weight

500mm/20’’

15m/50FT

9.5kg(21lbs)

700mm/30’’

15m/50FT

13kg(29lbs)

900mm/36’’

15m/50FT

14.5kg(32lbs)

Application:

Installed against the existing smooth wire mesh fence;

Fitted to the welded mesh fence;

Fitted by overlapping the fence mesh

Installed to the brick wall directly


Rapid Deployment Barrier

Packing and shipping:

Flat razor wire is wrapped with paper inside and and then wrapped with woven bag.

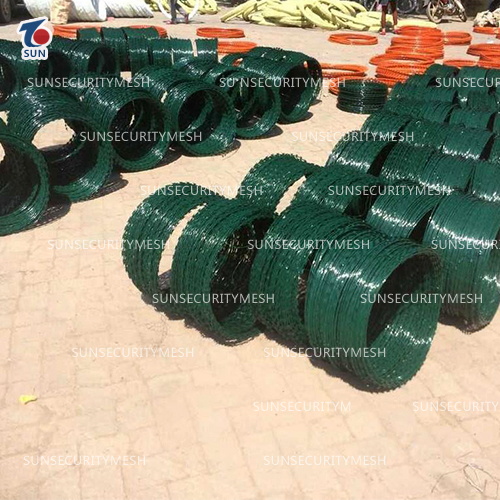

Flat Razor Wire packing

Flat razor wire is bundled and wrapped with 5 coils, and each coils is 15 meters long.

Flat Razor Wire Flat Razor Wire

   Razor Wire Installation Accessories

SUN Security offers the following tools for installing Razor Wire, including heavy duty bolt cutters, cable tie ratchets, clip applicators and handling hooks.

Razor-Wire-installation-accessories
