Razor wire security barrier system also known as anti-riot vehicle, is a new type of obstacle deployment equipment. The Rapid Deployment Barrier is used for riots, stability, borders, battlefields and road isolation. It can arm 1.75 meters high gill net belt quickly , hailed as: no bullet protective wall!
Razor wire security barrier system advantage:
1. Fast arming: The Razor Wire Trailer can be deployed for 100 meters in 20 seconds. The obstacles can be recovered within 4 minutes.
2. Automatic recovery function.
3.Using solar panel charging and DC charging to work。
4. The traction part can be folded or disassembled to save space.
5. Strong storage capacity.
6. Brushless motors make driving quieter and extend the service life of the motor.
7. The control system includes manual buttons and a remote controller; the device has both an oil-disc brake and an electric brake function.
8. Owning to the search lights, turn signals, tail warning lights and warning light tops, safety factor can be increased.
We provide work clothes, gloves (stainless steel gloves available), tool box and first aid kit.
Zhengyang razor wire security barrier system can quickly respond to emergencies. Within a few tenths of a second, a hundred meters of barriers can be scattered to quickly isolate the safe areas, thereby protecting the safety of people and property. This product can be used for stability, borders, battlefields and road isolation or permanent protection of military bases.
Net weight: 1200kg
Three types: manuals, manual operations, motor-driven.
Razor wire is not easy to deform due to its strong elasticity. The blade is very sharp and has good deterrent and protective effect.
The razor wire is made of 304 stainless steel and is suitable for harsh environments such as high temperature, high humidity, and acid rain. It can be used frequently and can be placed in the open air for a long time without fear of rust damage.

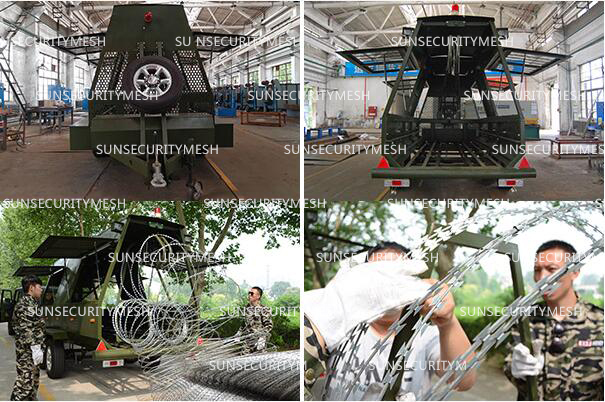

The razor wire security barrier system
is designed for the activities of the regional police and military.
Diameter: 65 - 70 cm (bottom), 80 - 120 cm (upper)
Material: Hot-dip galvanized, electro-galvanized, stainless steel blade; customized specification.
Length: Compression module: 3.6 meters Release length; 90 meters Cycle; Can be customized for customers.
Zhengyang razor wire security barrier system’s production process is divided into five steps:
First, prepare materials:
The material (channel steel, square tube) is cut into spare parts according to the drawing size.
(1) Use cooling water to sharpen blade to ensure that the blade does not deform when cutting steel.
(2) Test: Use a tape measure to measure the cut steel section; Check the angle of the square whether it is cut vertically
Phosphating is the process that a chemical and electrochemical reaction that forms a phosphate chemical
conversion coatings. The resulting phosphate
conversion coatings is called a phosphating coating. The purpose of phosphating is mainly to provide protection to the base metal, to prevent corrosion of the metal to a certain degree; to use for primer before painting, to improve the adhesion and anti-corrosion ability of the coatings; to reduce friction in the metal cold processing.
2. Phosphating type
(1) High-temperature type: 80-98°C treatment time is 10-20 minutes, and the phosphating coating thickness is 10-30g/m2. The ratio of the free acidity of the solution to the total acidity is 1: (7-8). Advantages: strong anti-corrosion coating, good bonding force.
(2) Chemical phosphating: The workpiece is immersed in a phosphating solution and phosphating is achieved by chemical reaction.
(3) Phosphate coating quality: Heavyweight (thick film phosphating). The coating weight is 7.5 g/m2 or more.
(4) Construction method: Impregnation phosphating. Suitable for high, medium and low temperature phosphating.
Features: Simple equipment, only need to heating tank and the corresponding heating equipment. It is best to use stainless steel or rubber lining tank and the stainless steel heating pipe should be placed on both sides of the tank.
3. Phosphating process
The phosphating process is divided into 8 steps, namely oil removal, hot water washing, pickling, cold water washing, cold water washing, phosphating, hot water washing and drying.

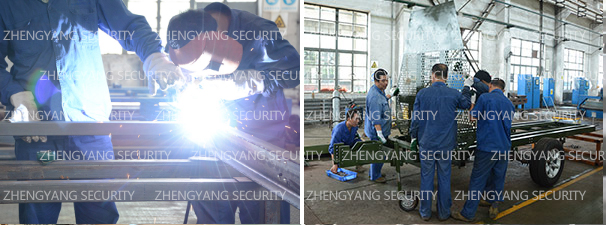

Third, welding and assembly：
Dioxic welding is used for welding. With small melting point and high repairability, it brings good protection for workers.
Here, we label all parts. Our customers can completely assemble the product body according to our installation instructions. Customers can watch the installation video of the Zhengyang razor wire security barrier system
on the website. You can also download the installation instruction manual in the “Support Center”.
Fourth, spray paint and test:
We choose high hardness, high gloss, bright colors, weather resistance, heat and humidity resistance, salt spray resistance and good mold resistance paint. The primer and top coat paint have a good combination and compatibility with each other.
After all the work is done, we will test the vehicle. Test items include body balance (front stand, rear stand, crossbeam, chassis, etc.), body force analysis, inspection of vulnerable parts of the product, fender clearance, hinge operation, track distance, and the most important power section .
Every step of careful testing is for quality improvement!
Razor wire package:
The trailer body is covered in camouflage clothing; three hexagonal wire mesh wraps are packed in woven bags. The iron-supported form will be used to secure the wire when transported.
