The plastic-covered gabion net is a cages made of hexagonal wire mesh (hexagonal mesh) knitted with two-way twisting of metal wire in one direction using a machine.
parameter:
(1) Aperture: 60 * 80mm, 80 * 100mm, 80 * 120mm, 100 * 120mm, 120 * 150mm.
(2)) wire diameter: gabion mesh divided into three kinds of wire diameter - wire, side wire, tied wire
(3) the scope of the wire in the 2mm-4mm
Side wire is generally greater than the wire, coarse 0.5mm-1mm
Wire Rally: not less than 38kg / m2 380N / mm
(4) Size: can be customized
(5) aperture, wire diameter control range
Surface treatment:
1. Electro-galvanized. On the amount of zinc up to 10g / m2. Corrosion resistance is poor
2. Hot-dip galvanizing. The maximum amount of zinc can reach 300g / m2. Strong anti-corrosion
3. Gore where the (zinc-aluminum alloy). This is divided into two materials, zinc -5% aluminum - mixed rare earth alloy steel wire, zinc -10% aluminum mixed rare earth alloy steel wire. Anti-corrosion super
4.PVC plastic package. The thickness of the package is generally 1.0mm thickness of the package, for example: 2.7mm package after 3.7mm. Strong anti-corrosion.
use:

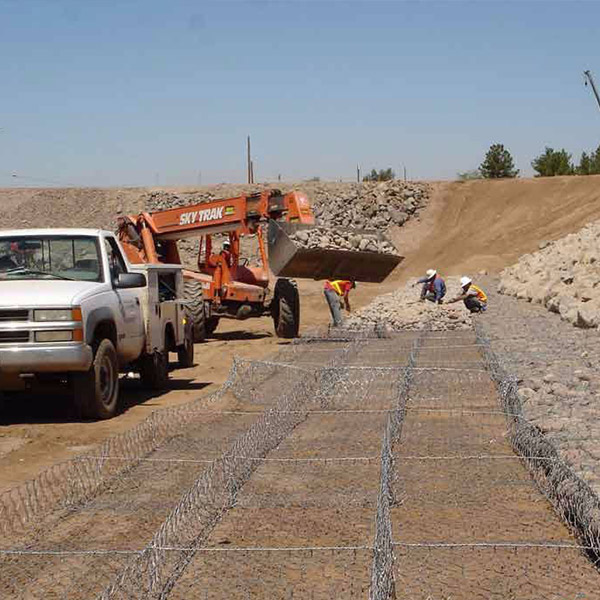

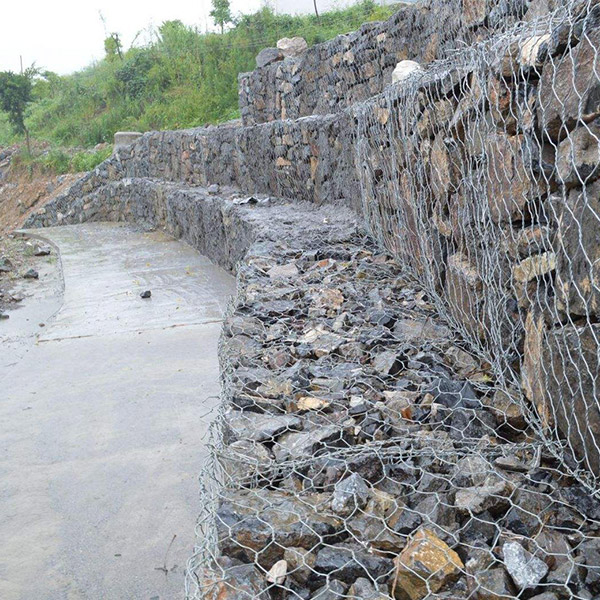

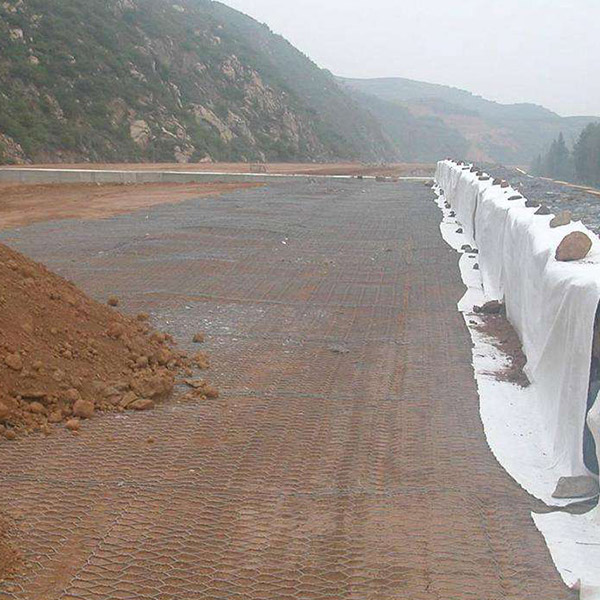

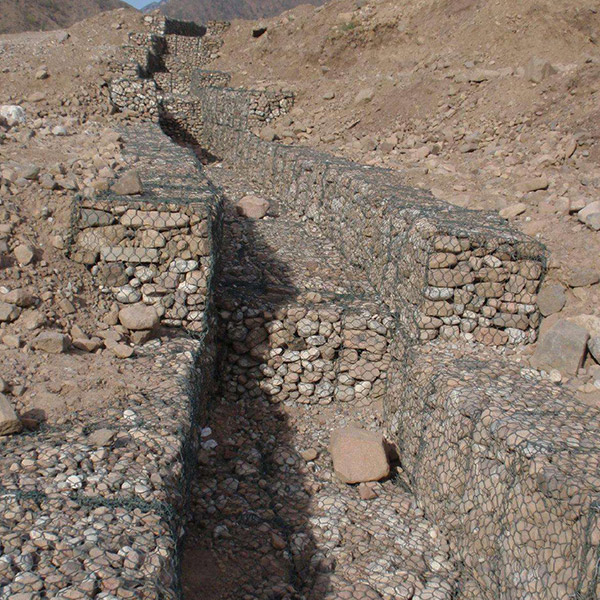

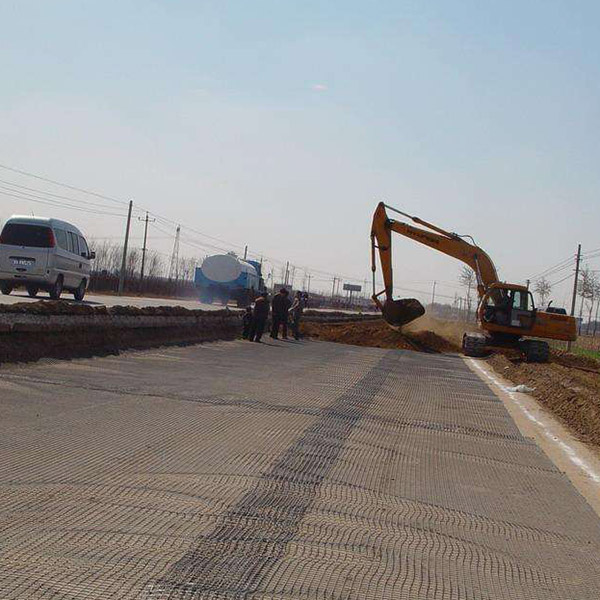

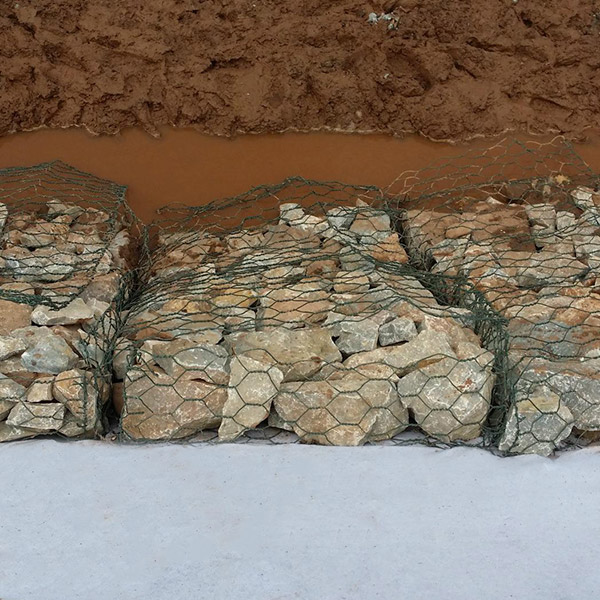

Can be used for slope support, foundation pit support, mountain rock face hanging net shotcrete, slope planting (green).
