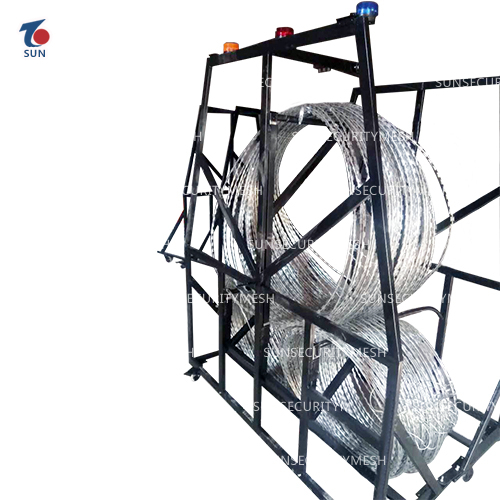

Razor Wire Mobile Security Barrier System

Razor wire mobile security barrier system can be quickly deployed in a short period of time to form a mobile security barrier, Rapid Deployment Riot Barrier which is mainly used for target protection, regional prevention, on-site control, disposal of large-scale group riots and other emergencies.

  • SUN-B001
  • SUN
  • Metal Material
  • Razor wire mobile security barrier system for handling emergencies, riots, stability, etc.
  • Camouflage canvas
Quantity:

Product Description

Razor Wire Mobile Security Barrier System is a newly-developed fast-on-the-road police car used by our company. It adopts the product-shaped barrier gill net made by our company's patented technology to realize the site-wide barrier. Barrier net can be quickly deployed in a short period of time to form a mobile security barrier, which is mainly used for target protection, regional prevention, on-site control, disposal of large-scale group riots and other emergencies.

Razor Wire Mobile Security Barrier System Advantages:

Vehicle barrier distance up to 90 meters or more

Razor Wire Mobile Security Barrier System Features:

1、Long barrier distance:Vehicle barrier distance up to 12 meters

3、Not affected by terrain:The Rapid Deployment Razor Wire Barrier can be used on flat terrain, pits, slopes, small obstacles, and other terrain 2、Fast and convenient operation:can be completed deploy or recover in 5-8 minutes with 2 persons

4、Wide range of uses: The barrier net can realize the combination of "一", "S", "U" and other barrier structures, and can be used in single or multiple groups; the connection can be set to capture doors.


"Straight" barrier

布障车

Docking

对接

zhengyang

5、Strong elasticity,Not easily deformed, Not easily impacted by people with blade

Character:

Cutting:

下料

Assembling:

焊接


Polishing:

抛光打磨

welding:


组装
Welding:


Packing

包装发货

Loading Shipping:

装车运输


D
estination:Inner Mongolia Armed Police Border Detachment

半自动布障车

Mobile Security Barrier System (Standard)

mobile security barrier system Standard
(一)Introduction:

   Triple strand rapid deployment barrier use the triple strand rapid deployment unit. Barrier nets can be quickly deployed in a short period of time to form a mobile safety barrier, which is mainly used for target protection, regional prevention, on-site control, disposal of large-scale group riots and other emergencies. The barrier car is modified by the second-class cargo chassis; the barrier gill net is automatically loaded and unloaded by hydraulics, and installation is quick and easy.
(二)Product demand

Police riot cover car: including the front, carriage, tailgate; in addition, it also includes a police riot evacuation barrier unit; a barrier unit is located in the carriage; the tailgate is hydraulically lifted and its surface is provided with barriers are fitted with corresponding casters for the loading and unloading of the barrier units.

The police riot deployment equipment is composed of 6 barrier units connected in series; the barrier unit comprises a retractable barrier net, a separable left and right frame. The two ends of the retractable barrier net are respectively set at on inner frame surface of the left frame and the right frame, supporting guide rods are arranged on the left frame and the right frame at positions corresponding to the telescopic barrier nets; casters are arranged at the bottoms of the left frame and the right frame, anti-slip fixing rod.

The barrier unit is provided with a catching door that can be opened and retracted on the outer frame surface of the right frame. The top of the left frame is provided with a strobe light, and the left frame is provided with a power supply device, and the power supply device is connected to control the strobe light.
When retracting the retractable barrier net, in order to stabilize the position and the connection between the left frame and the right frame to facilitate the packaging, a positioning sleeve and a positioning pin are correspondingly arranged on the left frame and the right frame respectively; the left frame and the right frame Correspondingly, a connecting ring is arranged on the side of the connecting ring, and a connecting cable that can be unlocked or buckled is arranged between the connecting rings.

When stretching the retractable barrier net, in order to stabilize and limit the stretching of the barrier net, a limiting member is arranged on the supporting guide rod to fix and limit the pull-out degree of the barrier net; the end of the supporting guide rod is oriented Bent underneath to avoid obstructing the pullout and retraction of the barrier net.

▲There are 3 retractable barrier net

The structure is simple, and a single barrier unit can be easily retracted for quick deployment, storage and retractable barrier net transport. According to the actual length required, a plurality of barrier units can be combined in any combination to perform the task of covering different lengths of pavement.

Lightweight and easy to move, the fabric can be quickly and easily stretched manually, and the stretching length can be adjusted to achieve fast and flexible cloth barriers.

Closure nets may be provided with catch gates; when the barriers are connected to each other by means of catch gates, it is convenient for access through the catch gates to and from the barrier area, and the task is flexible and convenient.
Positioning and connecting components are arranged between the left frame and the right frame, and the structure is compact after being stowed, and the package is stable, which is convenient for loading and transportation.

The loading vehicle carrying the barrier assembly unit is easy to load and unload, and can easily realize the free entry and exit of the barrier unit, facilitating the task to perform tasks quickly, flexibly and efficiently.

▲Strong power, good passability, loading capacity suitable for use in plateau areas
(三)Technical Parameters

Chassis brand model: Type II car cargo chassis

▲After the trailer is modified, the Ministry of Industry and Information Technology has announced the trailer and can apply for the license plate.

Parameter

Item


Item


Curb weightKG

≤6170

Drive form

≥4×2

Total weightKG

≥10000

Rated load

≥3645

Approach / departure angle( º)

≥21/10

Lengthmm

≤7290

Axle load(mm):

≥3350/6650

Widthmm

≤2340

Heightmm

≤3210

Tire specifications

≥8.25R20 14PR

Wheelbasemm

≥3815

Emission Standards

≥IV(National emission standard)

Engine Type

Diesel

Max power

≥139KW

Engine displacement

≥5.193L

Max speedkm/h

≥110

Testing

▲The entire trailer meets the national automobile production product setting standard

Anti-riot parameters

▲1. Trailer body size: Internal space of riot van body: 25 cubic meters, can accommodate at least 70 meters of barrier net.
2. Trailer body structure: Integral frame welded structure, the main frame adopts Q235A to ensure rigidity and strength. The outer skin of the car body is made of a high anti-rust performance steel plate, and the carbon dioxide gas shielded welding welding process skeleton is used.
▲3. In-Trailer lighting: there are setting lights in the trailer
4. Power system: install a set of professional power supply systems; all electrical wiring harnesses are covered with bellows protection and have good water resistance. The wiring harness is reasonable and firmly fixed.

5. Paint: The exterior surface of the car body is painted with an alloy primer and a top coat. Paint colors and patterns are for public security or customer designation.
6. Requirements
1Barrier group: It adopts a fully enclosed razor wiret structure composed of three layers;

Single set of razor wire cross section size: 1400X1700 (mm);

Single group distance: 12 meters per group;

Loading quantity: 6 groups;

Total distance: can be quickly expanded at least 70 meters;

Expansion method: Manual push-pull deployment;

Single razor wire weight: 80 (kg);

Height: 1.7 meters;

Width: 1.4 meters.
2Barrier timeThe operation is quick and easy; automatic loading and unloading is possible, can be complete deployed or recovered in 3-5 minutes with 2 people;
3Loading and unloading methods: automatic;
44Wide range of uses: The barrier net can realize the combination of "", "S", "U" and other barrier structures, and can be used in single or multiple groups;
53Not affected by terrain: Can be used on flat terrain, pits, slopes, small obstacles, and other terrain;
6Protection level: can prevent violence from large-scale crowds;

7Strong elasticityNot easily deformed, Not easily impacted by people with blade;


8Material: hot dip galvanized steel, not rust;

▲7Warning lights
1Long row of warning lights ( built-in 100W alarm) 1 item;
2Strobe lights 6
3Riot warning system 6 sets; Contains 6 batteries and 18 flashing lights to ensure 4 hours work alone.
8There are shutter doors
★SWAT color painting






(四)Configuration Checklist

No.

Function Classification

Model Parameter

1

Chassis

Type II Chassis, Diesel Engine, Three-seat,Meet exhaust emissions standards







2

Equipment box



Equipment box: Steel, Overall frame structure

Vehicle interior decoration: Pattern floor, Aluminum skin

Hydraulic turnover door: Steel production, Strong limit lock

Box floor track: High strength steel, CNC machining, detachable

Roller Shafts and Brackets: Round Steel, CNC Machining, Galvanic, Removable

Barrier net anti-rotation bracket fixed type

Barrier net anti-beating bracket bundle type

Razor wire anti-swing bracket fixed type

Razor wire anti-beating bracket bundle type






 3

Mobile razor wire

Telescopic frame angle steel, Tooling welding

Stretch net mesh customized

Catch and export angle steel, Tooling welding

Razor wire push wheel

Razor wiret connection folding tip CNC machining, with self-locking function

Razor wire telescopic bracket: Stainless Steel 304

Razor wire bracket roller: High-strength nylon

Razor wire holder: Angle steel, Tooling welding

Razor wire: With blade, Customized

Stainless steel 304: Razor wire connection




 4


Power warning

Control wiring harness: Waterproof connector

Long bar lights

Big square police lights

Long burst flashing lights

Emergency charging system: 6 charging posts

Emergency power system: including red, integrated wiring, storage modification, etc.

Inverter power installation


5

 Appearance paint

Standard production

Paint, Special police color spray




Mobile Security Barrier System (Enhanced)

(一)Introduction:

   Triple strand rapid deployment barrier use the triple strand rapid deployment unit. Barrier nets can be quickly deployed in a short period of time to form a mobile safety barrier, which is mainly used for target protection, regional prevention, on-site control, disposal of large-scale group riots and other emergencies. The barrier car is modified by the second-class cargo chassis; the barrier gill net is automatically loaded and unloaded by hydraulics, and installation is quick and easy.


(二)Product demand

Police riot cover car: including the front, carriage, tailgate; in addition, it also includes a police riot evacuation barrier unit; a barrier unit is located in the carriage; the tailgate is hydraulically lifted and its surface is provided with barriers are fitted with corresponding casters for the loading and unloading of the barrier units.

The police riot deployment equipment is composed of 6 barrier units connected in series; the barrier unit comprises a retractable barrier net, a separable left and right frame. The two ends of the retractable barrier net are respectively set at on inner frame surface of the left frame and the right frame, supporting guide rods are arranged on the left frame and the right frame at positions corresponding to the telescopic barrier nets; casters are arranged at the bottoms of the left frame and the right frame, anti-slip fixing rod.

The barrier unit is provided with a catching door that can be opened and retracted on the outer frame surface of the right frame. The top of the left frame is provided with a strobe light, and the left frame is provided with a power supply device, and the power supply device is connected to control the strobe light.
When retracting the retractable barrier net, in order to stabilize the position and the connection between the left frame and the right frame to facilitate the packaging, a positioning sleeve and a positioning pin are correspondingly arranged on the left frame and the right frame respectively; the left frame and the right frame Correspondingly, a connecting ring is arranged on the side of the connecting ring, and a connecting cable that can be unlocked or buckled is arranged between the connecting rings.

When stretching the retractable barrier net, in order to stabilize and limit the stretching of the barrier net, a limiting member is arranged on the supporting guide rod to fix and limit the pull-out degree of the barrier net; the end of the supporting guide rod is oriented Bent underneath to avoid obstructing the pullout and retraction of the barrier net.

▲There are 3 retractable barrier net

The structure is simple, and a single barrier unit can be easily retracted for quick deployment, storage and retractable barrier net transport. According to the actual length required, a plurality of barrier units can be combined in any combination to perform the task of covering different lengths of pavement.

Lightweight and easy to move, the fabric can be quickly and easily stretched manually, and the stretching length can be adjusted to achieve fast and flexible cloth barriers.

Closure nets may be provided with catch gates; when the barriers are connected to each other by means of catch gates, it is convenient for access through the catch gates to and from the barrier area, and the task is flexible and convenient.
Positioning and connecting components are arranged between the left frame and the right frame, and the structure is compact after being stowed, and the package is stable, which is convenient for loading and transportation.

The loading vehicle carrying the barrier assembly unit is easy to load and unload, and can easily realize the free entry and exit of the barrier unit, facilitating the task to perform tasks quickly, flexibly and efficiently.

▲Strong power, good passability, loading capacity suitable for use in plateau areas
(三)Technical Parameters



Chassis brand model: Type II car cargo chassis

▲After the trailer is modified, the Ministry of Industry and Information Technology has announced the trailer and can apply for the license plate.

Parameter

Item


Item


Weight

≥10055KG

Drive form

≥4×2

Lengthmm

≤9000,且≥8600

Approach / departure angle( º)

≥21/10

Widthmm

≤2350,且≥2000

Front / rear overhang(mm)

≤1110/2600

Heightmm

≤3350,且≥3000

Max Speedkm/h

≥110

Wheelbasemm

≥5200

Number of Passenger

单排3

Engine Type

Diesel

Emission Standards

≥IV(National emission standard)

Max power

≥139KW

Tire specifications

≥8.25R20 14PR

Engine displacement

≥5.193 L

Testing

▲The entire trailer meets the national automobile production product setting standard











Anti-riot parameters

▲1. Trailer body size: Internal space of riot van body: 25 cubic meters, can accommodate at least 70 meters of barrier net.
2. Trailer body structure: Integral frame welded structure, the main frame adopts Q235A to ensure rigidity and strength. The outer skin of the car body is made of a high anti-rust performance steel plate, and the carbon dioxide gas shielded welding welding process skeleton is used.
▲3. In-Trailer lighting: there are setting lights in the trailer
4. Power system: install a set of professional power supply systems; all electrical wiring harnesses are covered with bellows protection and have good water resistance. The wiring harness is reasonable and firmly fixed.

5. Paint: The exterior surface of the car body is painted with an alloy primer and a top coat. Paint colors and patterns are for public security or customer designation.
6. Requirements
▲(1Barrier group: It adopts a fully enclosed razor wiret structure composed of three layers;

Single set of razor wire cross section size: 1400X1700 (mm);

Single group distance: 12 meters per group;

Loading quantity: 6 groups;

Total distance: can be quickly expanded at least 70 meters;

Expansion method: Manual push-pull deployment;

Single razor wire weight: 80 (kg);

Height: 1.7 meters;

Width: 1.4 meters.
▲(2Barrier timeThe operation is quick and easy; automatic loading and unloading is possible, can be complete deployed or recovered in 3-5 minutes with 2 people;
▲(3Loading and unloading methods: automatic;
▲(44Wide range of uses: The barrier net can realize the combination of "", "S", "U" and other barrier structures, and can be used in single or multiple groups;
▲(53Not affected by terrain: Can be used on flat terrain, pits, slopes, small obstacles, and other terrain;
6Protection level: can prevent violence from large-scale crowds;

▲(7Strong elasticityNot easily deformed, Not easily impacted by people with blade;


▲(8Material: hot dip galvanized steel, not rust;

▲7Warning lights
1Long row of warning lights ( built-in 100W alarm) 1 item;
2Strobe lights 6
3Riot warning system 6 sets; Contains 6 batteries and 18 flashing lights to ensure 4 hours work alone.

▲8There are shutter doors
★SWAT color painting







(四)Configuration Checklist

No.

Function Classification

Model Parameter

1

Chassis

Type II Chassis, Diesel Engine, Three-seat,Meet exhaust emissions standards







2

Equipment box



Equipment box: Steel, Overall frame structure

Vehicle interior decoration: Pattern floor, Aluminum skin

Hydraulic turnover door: Steel production, Strong limit lock

Box floor track: High strength steel, CNC machining, detachable

Roller Shafts and Brackets: Round Steel, CNC Machining, Galvanic, Removable

Barrier net anti-rotation bracket fixed type

Barrier net anti-beating bracket bundle type

Razor wire anti-swing bracket fixed type

Razor wire anti-beating bracket bundle type






 3

Mobile razor wire

Telescopic frame angle steel, Tooling welding

Stretch net mesh customized

Catch and export angle steel, Tooling welding

Razor wire push wheel

Razor wiret connection folding tip CNC machining, with self-locking function

Razor wire telescopic bracket: Stainless Steel 304

Razor wire bracket roller: High-strength nylon

Razor wire holder: Angle steel, Tooling welding

Razor wire: With blade, Customized

Stainless steel 304: Razor wire connection




 4


Power warning

Control wiring harness: Waterproof connector

Long bar lights

Big square police lights

Long burst flashing lights

Emergency charging system: 6 charging posts

Emergency power system: including red, integrated wiring, storage modification, etc.

Inverter power installation


5

 Appearance paint

Standard production

Paint, Special police color spray
