mobile security barrier system

Rapid deployment trailer

Product introduction:

This is our latest type of off-road barrier vehicle, which can be operated in complex road conditions such as desert and mud.The product is widely used in Africa and the Middle East.
The anti-riot barrier vehicle is a safety protection product composed of a carrier vehicle and multi-layer gillnets. It is used to provide rapid protection in riots and military areas and realize rapid deployment and isolation. This is a serious obstacle to the entry of rebels, demonstrators and vehicles.

The steel plate used on the trailer is low-carbon steel Q195 standard, and the thickness reaches: 1.8mm
Fast deployment: At a speed of 20-30 hours, it can be deployed at a uniform speed within 20 seconds, and the razor barbed wire barrier can be recovered within 4 minutes.

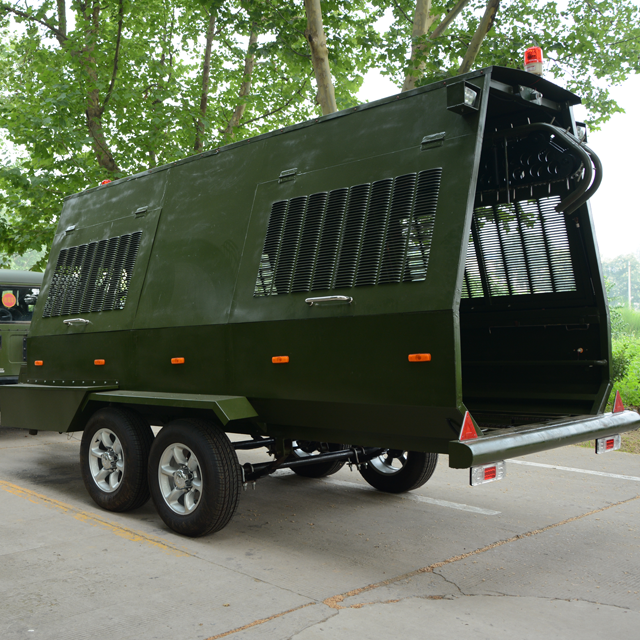

 rapid deployment barrier


Trailer introduction:
Dimensions: Length: 5.8m Width: 2.0m Height: 2.4m Total weight of riot barrier car: 2200kg
Anti-riot barrier vehicle components: automatic recovery function; carrying vehicle; razor wire
The traction part can be folded or disassembled to save space.
Brushless motors make driving quieter and extend the service life of the motors.
The control system includes manual buttons and remote controls; the equipment has both oil pan brake and electric brake functions.


With the help of searchlights, turn signals, tail warning lights, and the top of the warning lights, the safety factor is increased;
Tires: sporty HD819 off-road tires(It has good off-road performance and can be carried out on desert or poor road surface.)

The equipment comes with attachment of four jacks. You can open them to extend the life of the tire, when the equipment is not in use for a long time.
We provide work clothes, gloves (stainless steel gloves are available), tool boxes and first aid kits.


The main components of the anti-riot barrier vehicle adopt military phosphating technology for surface treatment of steel to extend the service life of the product.



3D barrier car
The 3D barbed wire consists of three rolls of razor barbed wire. The lower two rolls of razor barbed wire have a single roll diameter of 730mm, and the upper roll of razor barbed wire has a diameter of 980mm. The total weight of the vehicle's barbed wire is 520Kg. The barrier height is 150cm. 150cm in width.The stab net assembly is riveted together by three rings, and there are four anti pulling steel ropes riveted, with a diameter of 3mm; due to the role of steel ropes, the stab net will not be damaged due to excessive elongation when it is stretched.

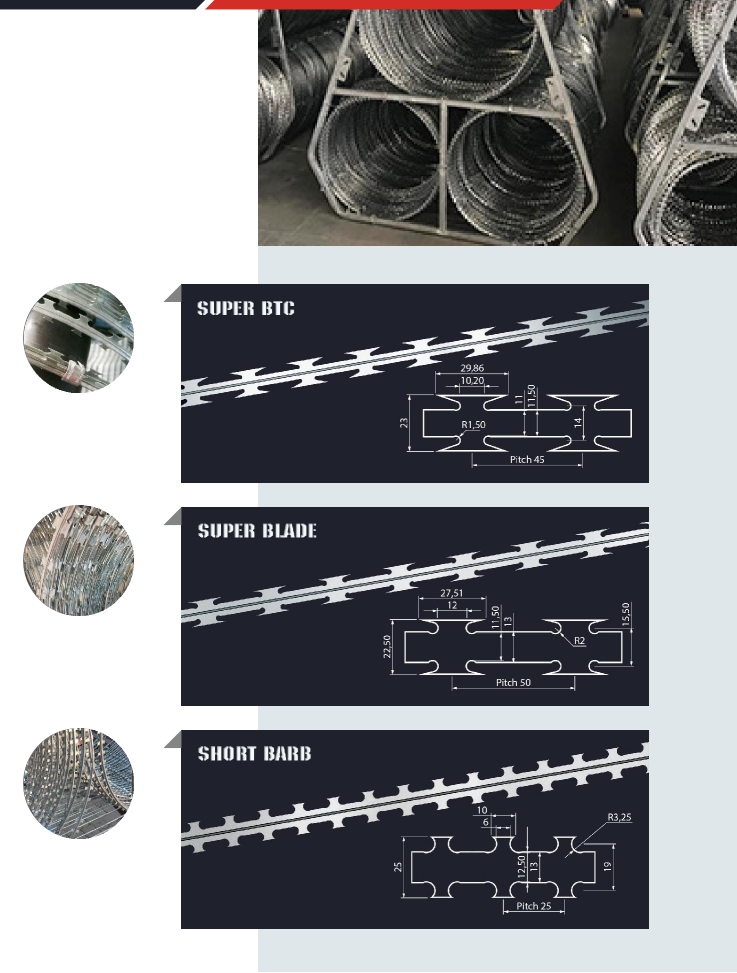

Rapid-Wire-Deployment-System



Product work display diagram:


Installation method:

split installation and assembled trailer.
