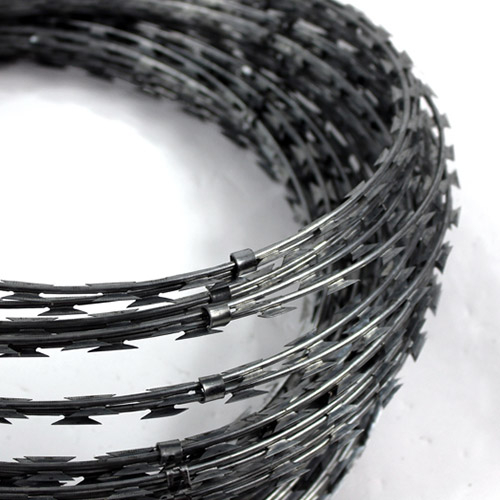

Concertina Razor Wire

Concertina razor wire for the installation of safety barrier spirals, in particular reinforced straps and hexagonal accordion coils reinforced with barbed straps, are the most effective guards and the best barrier to the safety of the surrounding environment for roadblock isolation and Temporarily moved or permanently on land or on a fence. Suitable for all kinds of fences.

Quantity:

Product

Product introduction

Concertina razor wire  for the installation of safety barrier spirals, in particular reinforced straps and hexagonal accordion coils reinforced with barbed straps, are the most effective guards and the best barrier to the safety of the surrounding environment for roadblock isolation and Temporarily moved or permanently on land or on a fence. Suitable for all kinds of fences.



Concertina Razor Wire

Concertina Razor Wire has two formations: spiral formation (unclipped) and concertina formation (clipped).

Concertina Razor Wire  Concertina Razor Wire



Each spiral circle is joined by three, five or seven rows of connector clips, depending on the diameter of the circle. This condenses the spacing of the spirals.

Concertina Razor Wire

The clip is made of 1.5-2mm thick and overall 10mm wide hot – galvanized sheet metal or stainless steel. This makes the coil very difficult to open, even with a special tool. The diameter of the circle is reduced by 5-10% after opening.

Concertina Razor Wire

Specification

Concertina Razor Wire Specification/Options


Coil Diameter  No. of Loops  No. of Clips  Recommended Stretch Length
 200mm/203mm(8'')  33/33  Unclipped  6-8m/25ft
 300mm/305mm(12'')  33/33  Unclipped  8-10m/30ft
 400mm/405mm(16'')  33/33  Unclipped  10-12m/40ft
 450mm/457mm(18'')  33/33  Unclipped  12-15m/50ft
 600mm/609mm(24'')  33/33  Unclipped  12-15m/50ft
 305mm/12''  54/31  3  6.5m/12ft
 400mm/16''  33/33  3  8m/15ft
 457mm/18''  54/31  3  8m/15ft
 609mm/24''  54/31  3  11m/20ft
 700mm/27''  54/31  3/5  11m/20ft
 762mm/30''  54/31  3/5  11m/20ft
 980mm/38.5''  54/31  3/5  11m/20ft
 1270mm/50''  54/31  7/9  11m/20ft
 1520mm/60''  54/31  9  8m/25ft


Note: Customized specifications are also welcome. All dimensions are approximate, manufacturers tolerances apply.

Concertina Razor Wire

Applications

Concertina Razor Wire Concertina Razor Wire

A single coil of razor wire or concertina coil is usually fixed to a fence or wall, providing a good deterrent. Correctional institutions (penitentiaries), government facilities, prison, military zones, airport, farm, police, private security zones, border security, private properties cannot be without it.

Concertina Razor Wire Concertina Razor Wire
Rapid Deployment Barrier

Package

Concertina Razor Wire  Concertina Razor Wire

Both single coil and cross type razor wire are wrapped with water-proof paper inside and woven bag outside.
We can also print your own trademark as you required.

Concertina Razor Wire

Concertina Razor Wire

Workshop

Concertina Razor Wire

Concertina Razor Wire
