Foundation Pit Support Of Stone

Quantity:

Product Description

Gabion is made of high corrosion resistance, high strength, low ductility of the low-carbon steel wire or coated with PVC above the wire weaving machine.

Foundation Pit Support Of Stone Foundation Pit Support Of Stone

parameter

(1) Aperture: 60 * 80mm, 80 * 100mm, 80 * 120mm, 100 * 120mm, 120 * 150mm
Which twisted part of the length of not less than 50mm. To ensure that the twisted part of the metal wire coating and PVC coating from damage. In this case,
(2) wire diameter: gabion wire mesh divided into three kinds - wire, wire side, tied wire
1. The range of mesh wire is 2mm-4mm
2. Side wire is generally greater than the wire, coarse 0.5mm-1mm
3. tie wire is generally less than wire, common to the majority of 2.2mm
(3) wire tension: not less than 38kg / m2 380N / mm
4m x 1m x 1m, 4m x 1m x 1m x 1m, 4m x 1m x 0.5m, also according to customer requirements for production. Surface protection of a hot-dip galvanized, galvanized aluminum, coated PVC and so on.

Surface treatment:


1. Electro-galvanized. On the amount of zinc up to 10g / m2. Corrosion resistance is poor
2. Hot-dip galvanizing. The maximum amount of zinc can reach 300g / m2. Corrosion resistance is strong
3. Gore where the (zinc-aluminum alloy). This is divided into two materials, zinc -5% aluminum - mixed rare earth alloy steel wire, zinc -10% aluminum mixed rare earth alloy steel wire. Anti-corrosion super.

use:

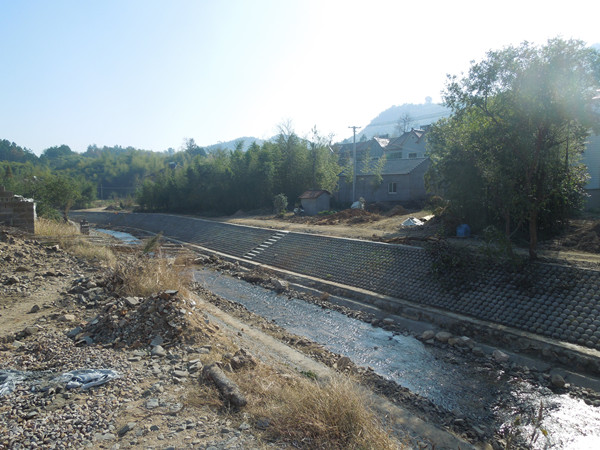

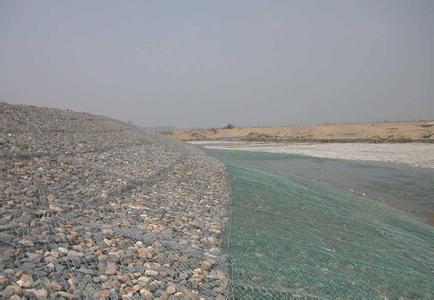

The structure can be used for slope protection, foundation pit support, mountain rock face hanging net shotcrete, slope vegetation (green), railway freeway isolation retaining block, it can also be made into cage, mat for rivers, Dam and seawall anti-erosion protection and reservoirs, river closure with the cages.
