"Rapid Deployment Barriers" refer to security devices that can be quickly installed and activated, typically used in emergency response, military, defense, or public safety fields. The purpose of these devices is to rapidly create obstacles, restrict access, or prevent vehicle passage in response to sudden security threats. Common types of rapid deployment barriers include vehicle blockers, roadblocks, barrier nets, and guardrails.

Advantages

1. Fast Deployment

It can deploy 100M barrier in 19 seconds and recover in 4 minutes

2. Military standard

Trailer is made of strong strength steel, which is in accordance with military standard

3.Automatic Withdrawing

You only need to press the button on remote control to recover barrier that is recycled.

4. Modular Design

Traller is modular desianed, so it is shipped in knock-down condition, This saves store space and freight cost

5. Easy Assembly

Trailer is easy to assemble and operate. Traction part can be folded or knocked-down when not work, so as to save space

6.Perfect Accessories

Bruhless motor makes travel more quite and needs low maintenance costs.

Off-road tires are applicable to hard transportation and weather;

Storage battery, along with solar panel make trailer work longer;

Control system includes both manual buttons and remote controller:

The equipment has both oil disc brake and electric brake function.

Specifications

1. Trailer

Length: 5.8m

Width: 2.0m

Height: 2.3m

Net Weight: 2300kgs-2400kgs

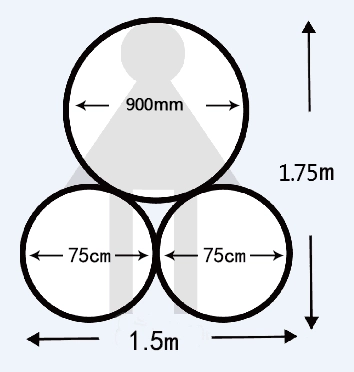

2. Razor wire

Coil diameter: 75cm(bottom),900-1000cm(top)

Material: hot-dipped galvanized, electric-dipped galvanized, stainless steel

Blade: Specifications are customized

Length: compressed module: about 3.5m

released length 100m

Loops: As clients required.

Height: 1.75m

Manufacturing Process

There are five stages of production process.

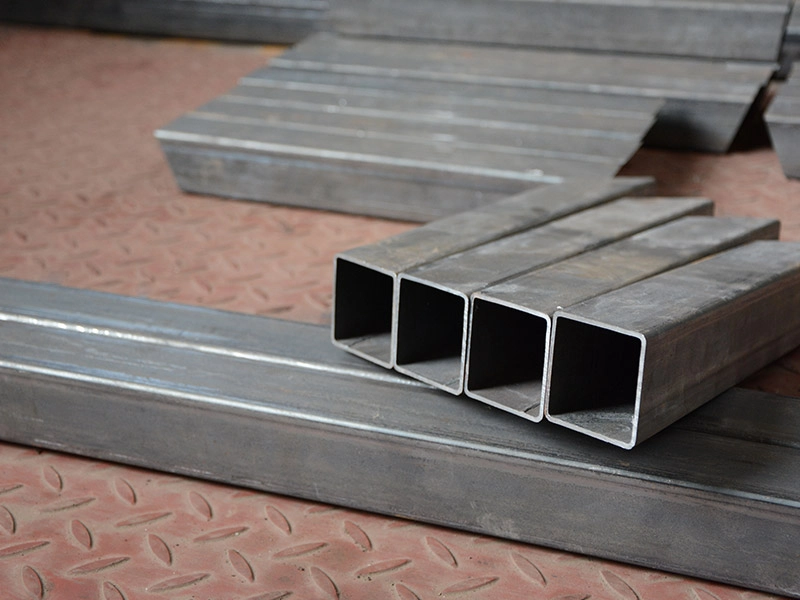

1. Steel Bar Arrangement. Workers use machines to cut the steel bars into desired shapes, according to the drawings.

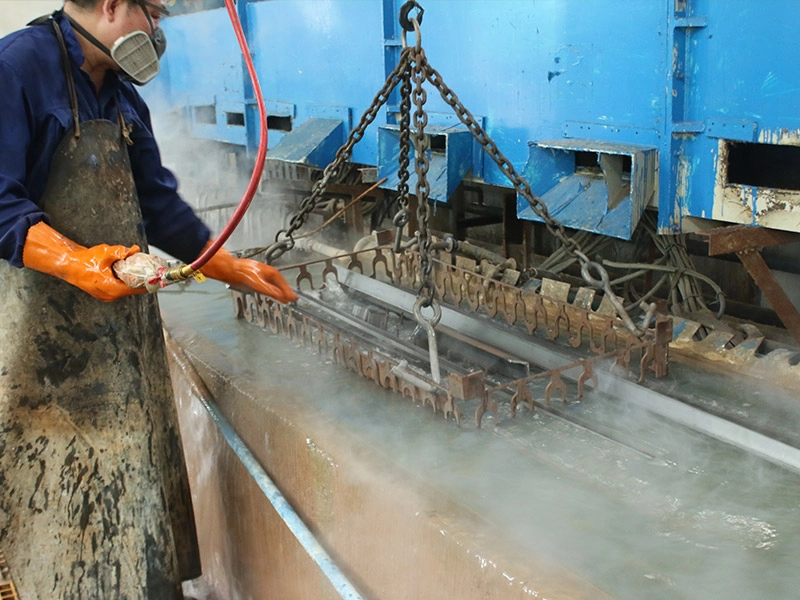

2. Surface treatment ( 8 steps). it is to give the metal a reasonably hard, electrically non-conducting surface coating of insoluble

phosphate, which is contiguous and highly adherent to the underlying metal, and is considerably more absorptive than the metal.

3. Welding and Assembly. During this stage, we effectively combine components by using co2 welding, nut and bolt.

4. Paint. We paint for two times to make the trailer surface more smooth and uniform.

5.Assembly. lt is easy to assemble all part following on the instruction.

6. Test. All rapid deployment trailer is tested to make sure there is no problem when being used

7. Packaging. The trailer body is covered with camouflage clothing; triple-strand concertina razor wire is packaged with woven bag. Supporting iron form will be used to fixed the razor wire when transported.
