Mobile Razor Wire Barriers

Views:0     Author:Site Editor     Publish Time: 2019-12-03      Origin:Site Inquire

Mobile Razor Wire Barriers

MOBILE RAZOR WIRE  BARRIERS

MOBILE RAZOR WIRE  BARRIERSis designed for rapid deployment of effectively layered concertina coils. This is serious obstacle for rebels or demonstrators and vehicles to gain entry.

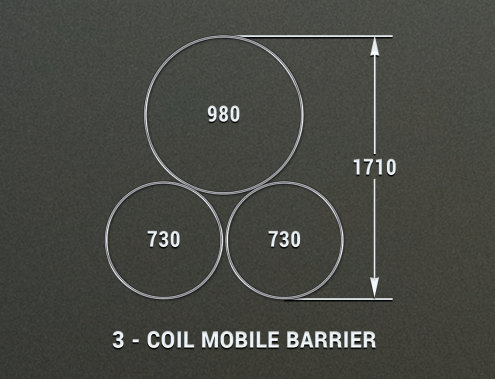

Razor wire trailer deployment trailers are available in 3 coil configuration (3 coil = gives 1.7m high protection for 100m distance).

The operation of the razor wire deployment trailer is simple and convenient. Connected to the vehicle through axis of traction and can be hitched on any type of vehicle. The next step will be to open the tall gate or release the barrier holder frame and drive forward automatically releasing and stretching the concertina coil barrier.

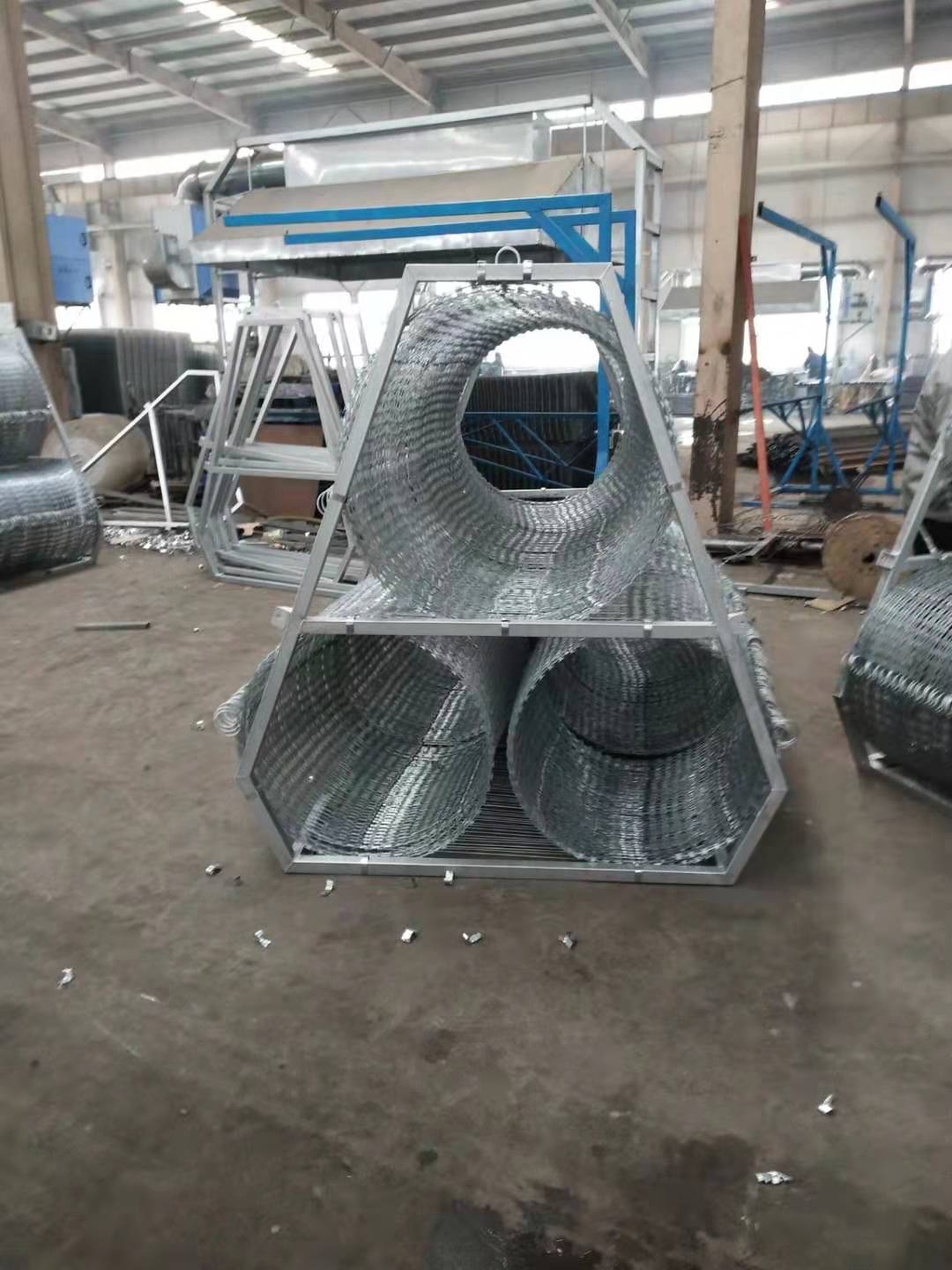

razor wire mesh



RAPID DEPLOYMENT TRAILER SPECIFICATIONS:

2 x 730, 1 x 980 galvanized wire (275 gms m2), blade thickness 0.5mm;

5 x 730, 1 x 980 galvanized wire (275 gms m2), blade thickness 0.5mm;

Reflective, anti-stretch cable;

“DANGER” board on the barrier;

Galvanized inner frames;

Free standing tailgates;

Inner frame lock system

Surface treatment: Phosphating treatment, a protective film on the surface is a longer life

 Razor wire mesh

RAZOR WIRE CONCERTINA OPTIONS

Coil Diameter

730mm

980mm

Recommended Stretch Length

10  12m

10 — 15m

Coil Diameter when Stretched

620mm

820mm

Spiral Turns per Coil

54 / 55

54 / 55

Clips per Spiral

5

5

Application:

Razor wire trailer deployment is designed for rapid deployment of effectively layered concertina coils. This is serious obstacle for rebels or demonstrators and vehicles to gain entry.










Application:

Razor wire trailer deployment is designed for rapid deployment of effectively layered concertina coils. This is serious obstacle for rebels or demonstrators and vehicles to gain entry.
