Galvanised steel fence

Views:7     Author:Site Editor     Publish Time: 2019-06-10      Origin:Site Inquire

Galvanised steel fence


Palisade Fence is widely used in the industry. As a commercial fence, using hot formed and cold rolled steel belts to form a secure panel. Palisade Fence can prevent us from most of the intrusions. There are also three types of tops, including "W" profile, "D" profile and angle iron. Deming Palisade Fence can also prevent crime for the private residents.

pl22101509-2019_galvanized_iron_wrought_steel_fence_2_1x2_4m_high_quality



Palisade Fencing Popular Specification

Part Name

Specification

Component Quantity

"H" Post

100 x 55 x 5mm

1pc

Rail Section

50 x 50 x 5mm

2pcs

Pale Section



"D" Section

65 x 3.0mm

17pcs

"W" Section

75 x 2.0mm

17pcs

Fish Plate

115 x 30 x 6mm or 140 x 39 x 8mm

2pcs

Saddle head M8 Bolts

M8 x 40mm

34sets

Cup square M12 Bolts

M12 x 30mm

4sets

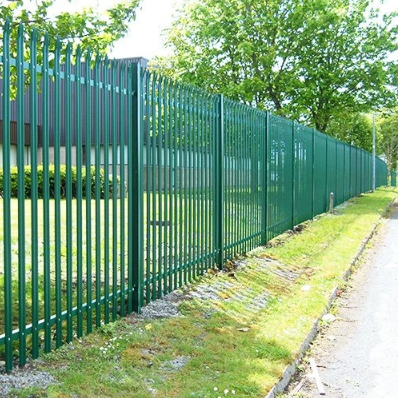

Palisade Fencing After Installed:

Palisade Fencing

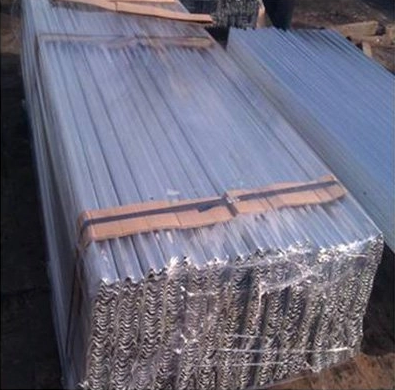

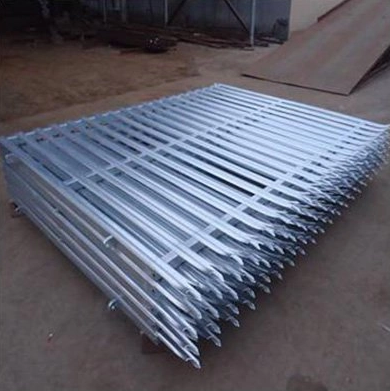

Palisade Fence Packaging And Loading:

Palisade Fencing packaging way:
1. Wrapped with plastic film.
2. Covered with carton board.
3. Tie with steel belt.
4. Covered with Your logo.
5. Loaded on steel pallets.

Palisade FencePalisade Fence


Application: petroleum, power station. Military bases. The government. And other important places
