Airport security fence
Airport fence also known as "y-type security protection net", is made up of v-type bracket column reinforced welded mesh, security and anti-theft connectors and galvanized blade gill net composed of high strength and safety defensive level. It is widely used in airports, military bases and other high security places.
Product parameters:
It is welded with 5.0mm high strength low carbon steel wire.
Mesh: 50mmX100mm, 50mmX200mm.
The mesh has V-shaped ribs to greatly enhance the impact resistance of the fence.
The column is a 60X60 rectangular steel with a V-shaped frame at the top. Or use a 70mmX100mm hanging connection column. The products are hot-dip galvanized and then electrostatically sprayed with high-quality polyester powder, using the internationally popular RAL color. (Specifications can be customized according to customer requirements)
specification | shape | Blade thick | Core diameter | Knife length | Blade width | Knife distance | |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 | ||
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | ||
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | ||
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | ||
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 | ||
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 | ||
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | ||
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | ||
Product features:
1. It has the characteristics of beautiful, practical and convenient transportation and installation.
2. The terrain adaptability is strong, and the link position with the column can be adjusted up and down with the ground fluctuation;
3. Adding four bending ribs in the horizontal direction of the airport fence network, while increasing the overall cost, the mesh strength and aesthetics are significantly increased, which is one of the most popular at home and abroad.
Product advantages:
1.The airport fence products are hot-dip galvanized and then sprayed with high-quality polyester powder, using internationally popular RAL colors.(Specifications can be customized according to customer requirements)
2.If the blade barbed wire and the blade barbed wire are added on the top of the airport fence net, the safety protection performance is enhanced.
3.Due to its high safety and anti-climbing ability, the mesh connection method adopts special SBS fastening parts, which effectively prevents artificial destructive disassembly and laterally bends the reinforcing ribs, so that the strength of the mesh surface is significantly increased.
Product packaging:
The packaging papers of the products are all packaged and can be customized according to customer requirements.

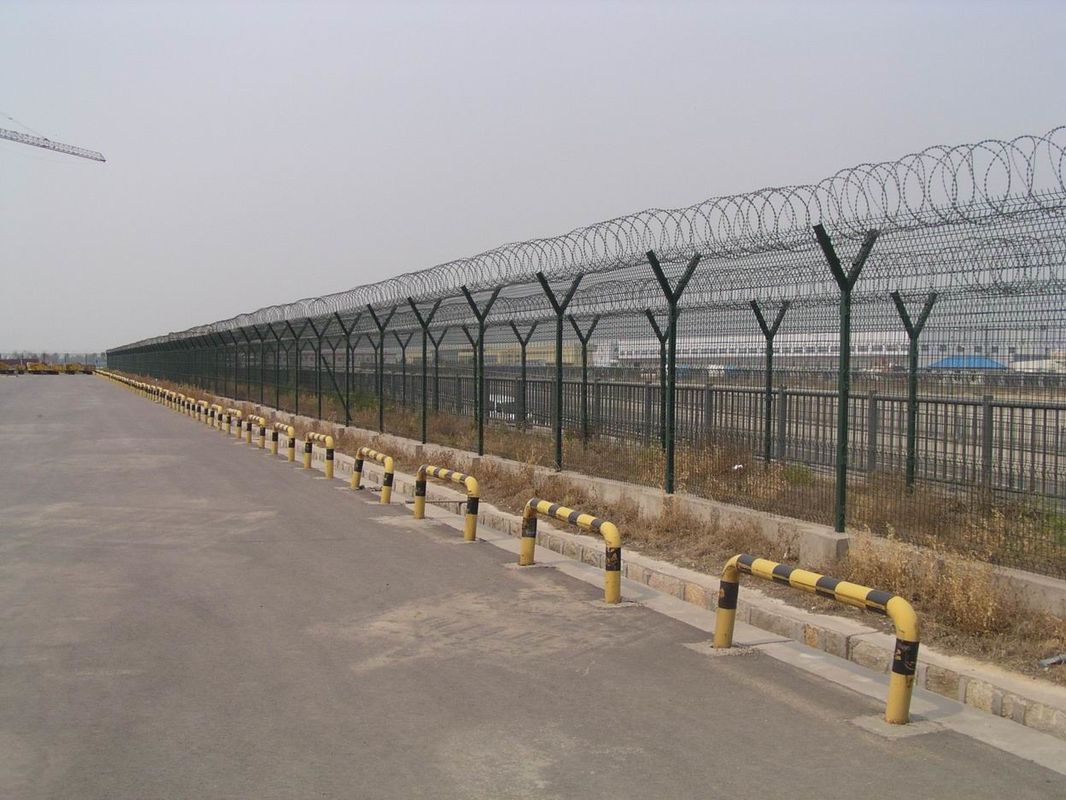

Application :
Isolation and protection of airports, roads, railways, and bridges, security of airports, ports, and docks, isolation and protection of parks, lawns, zoos, lakes, roads, residential areas, hotels, hotels, Protection and decoration of supermarkets and entertainment venues.
